Steering castor wheels Multi-Mover

Default steering wheels

The selection of the steering wheel is very important for warranting steering, comfortable driving and safety. You can always order other castor wheels single or as a set.

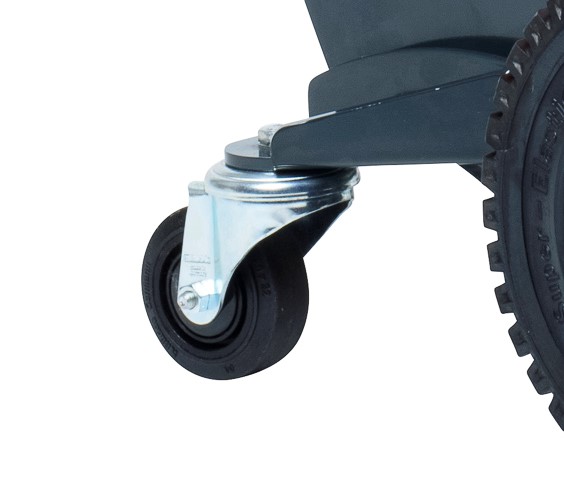

Multi-Mover S12 : By default this Multi-Mover is provided with 2 hard rubber swivel castor wheels Ø80 mm x 35 mm.

Multi-Mover S15 : By default this Multi-Mover is provided with a hard rubber swivel castor wheel Ø125 mm x 40 mm.

Multi-Mover M18, M18sv, L25, XL35 and XL50: By default these Multi-Movers are provided with a hard rubber swivel castor wheel Ø 200 mm x 40 mm.

Multi-Mover XL75: By default these Multi-Movers are provided with a hard rubber swivel castor wheel with 2 wheels, 2 x Ø200 mm x 40 mm

Multi-Mover XXL: Steering on the tiller arm : The non-marking hard rubber castors for the XXL have a 25 cm diameter and are always in pairs. 2 x Ø 250 mm x 40 mm

Multi-Mover 3XL, 4XL and 5XL: Power steering : The hard rubber castors for have a 30 cm diameter and are always in pairs. 2 x Ø300 mm x 50mm

Optional castor wheels Multi-Mover

We have castor wheels to suit your Multi-Mover.

Non Marking or blanko castors for all models mostly used in-side.

Pneumatic castor wheels, more comfortable to drive on for example on pavement or lawn.

Anty wheely wheels, avoid tipping over when speeding.

Side castors, lateral guidance to stay on track

Name	Size	Details
Solid wheel swifel castor S12	Ø80 mm x 35 mm	2 pieces Optional Non-Marking For model S12

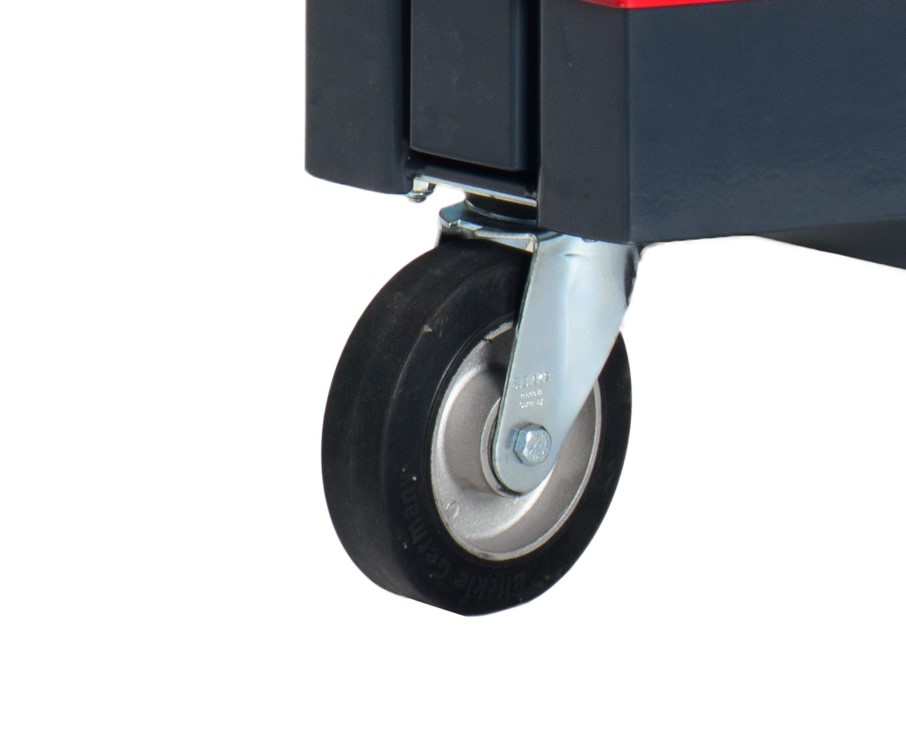

Solid wheel swifel castor S15	Ø125 mm x 40 mm	Optional Non-Marking For model S15

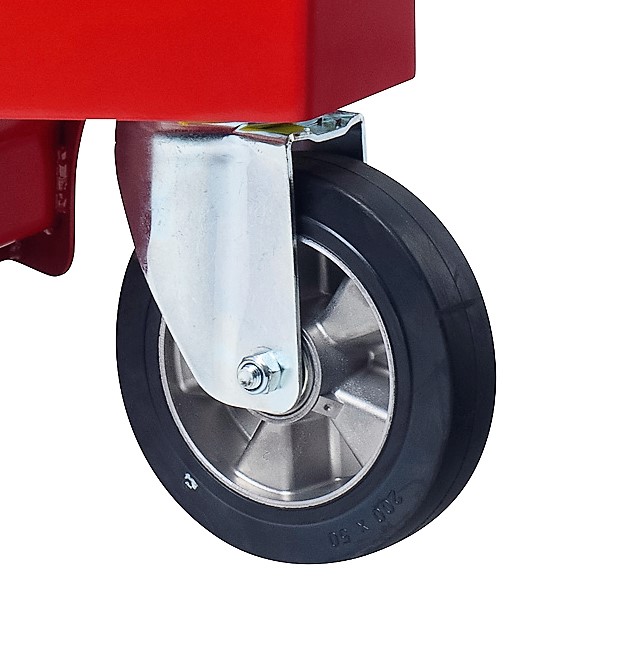

Solid wheel swifel castor	Ø 200 mm x 40 mm	Standard on model M18, M18sv, L25, XL35 and XL50 For inside and outside

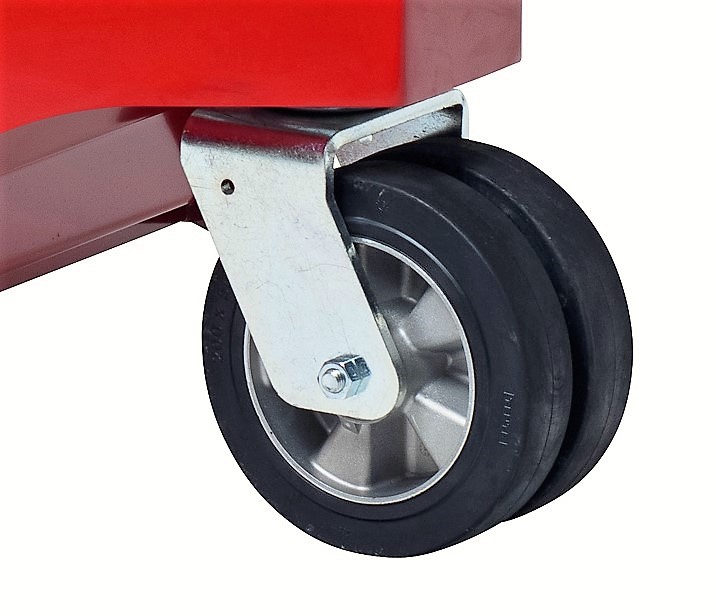

Solid double wheel swifel castor	Ø 200 mm x 40 mm	Standard on model XL75 For inside and outside Total width is 110 mm

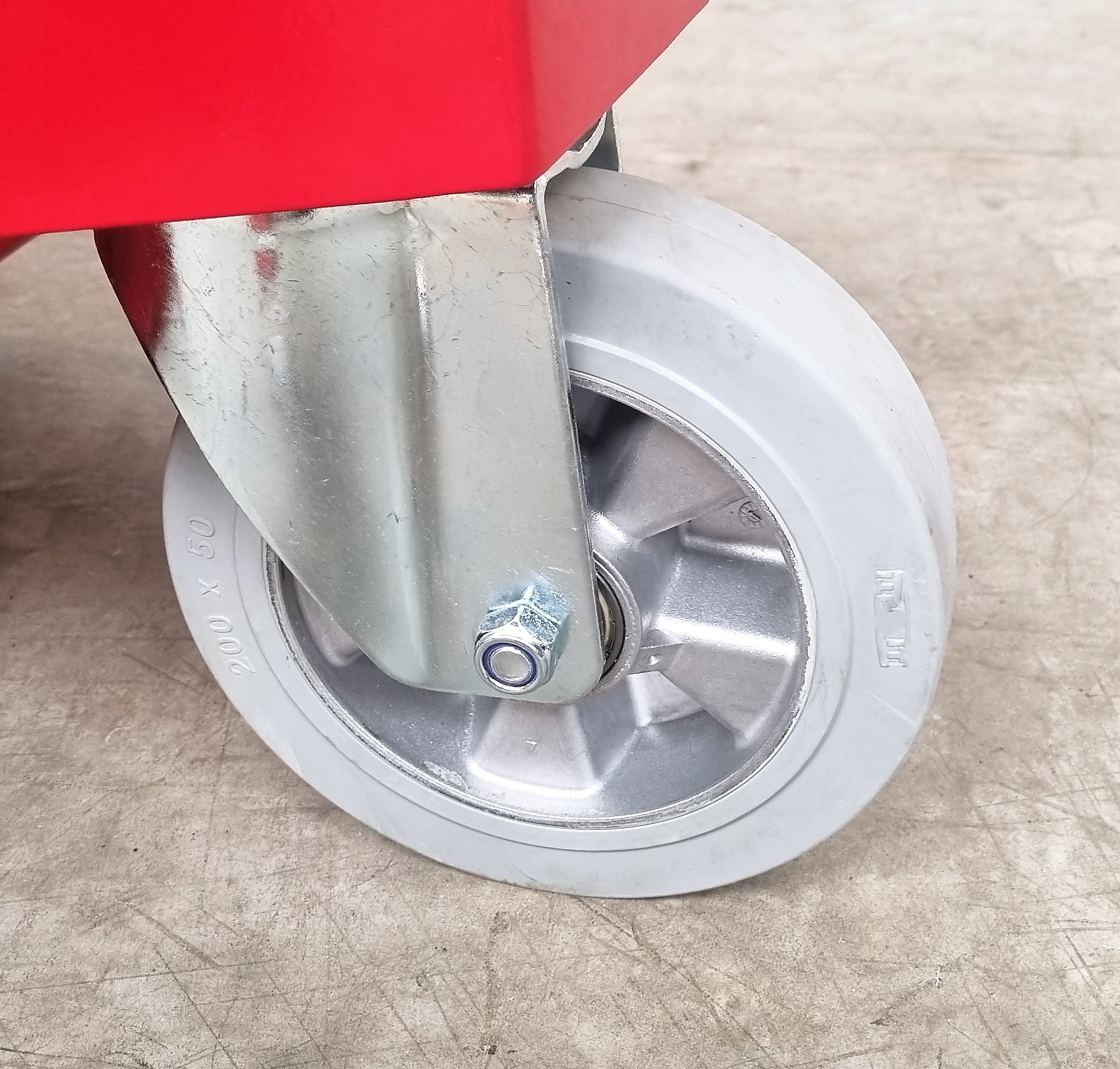

Solid wheel swifel castor non marking	Ø 200 mm x 40 mm	Non Marking, for inside use
Solid double wheel swifel castor non marking	Ø 200 mm x 40 mm	Non Marking, for inside use Total width is 110 mm

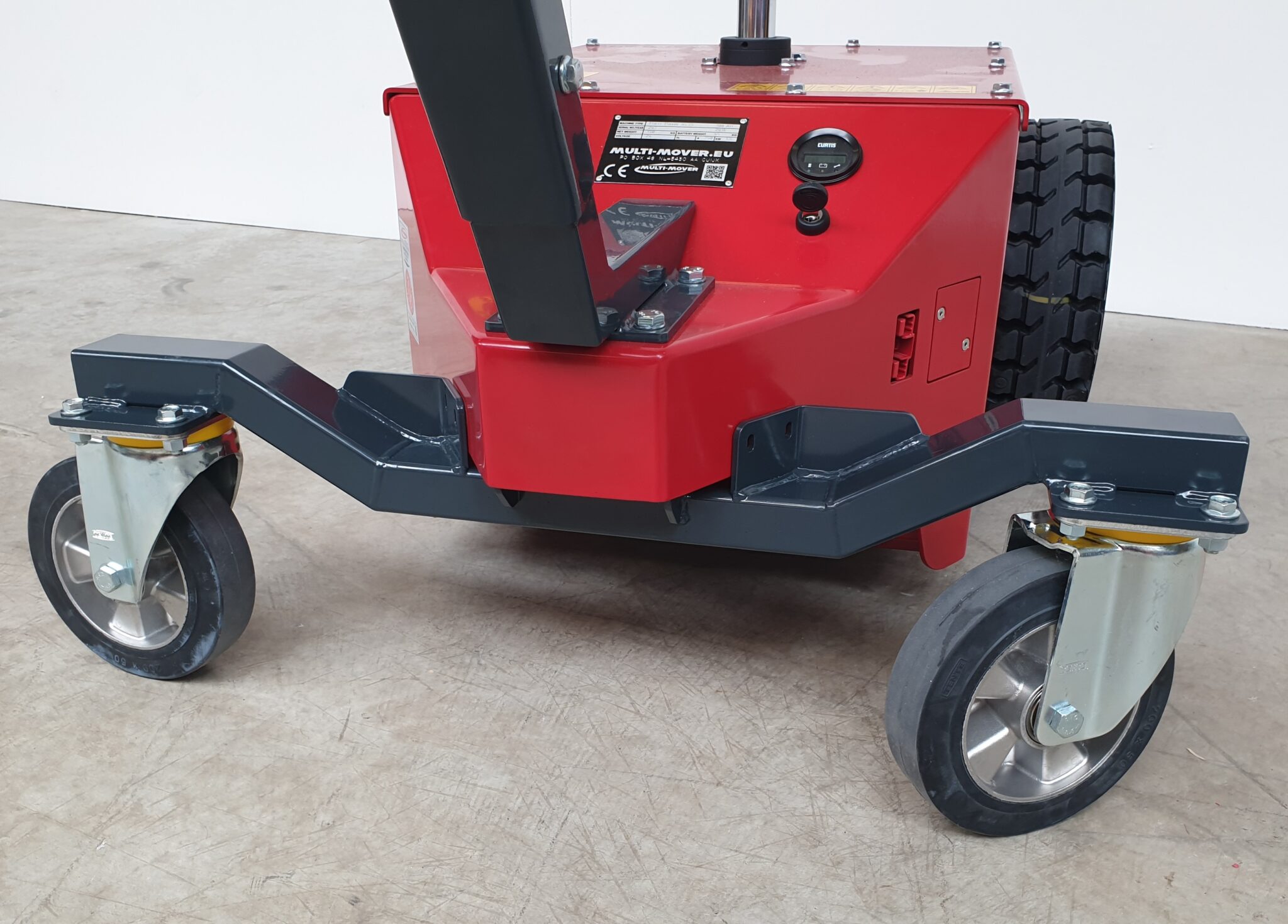

Double single castor wheels	2x Ø 200 mm x 40 mm	For inside and outside use Width inside is 80 cm Optional non marking

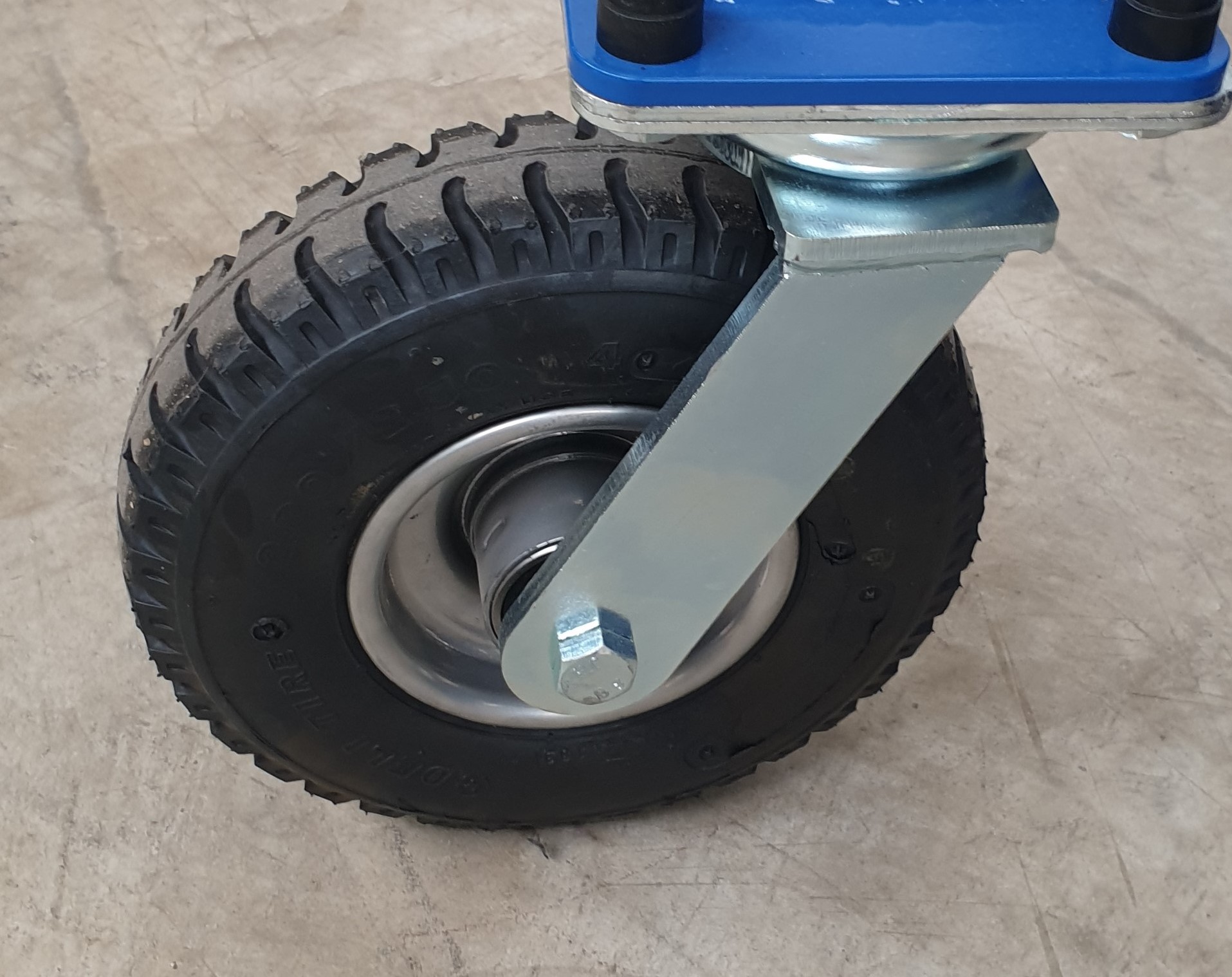

Pneumatic wheel swifel castor	Ø 215 mm x 2,5-4	More comfortable to drive on bumpy roads Width 40 mm

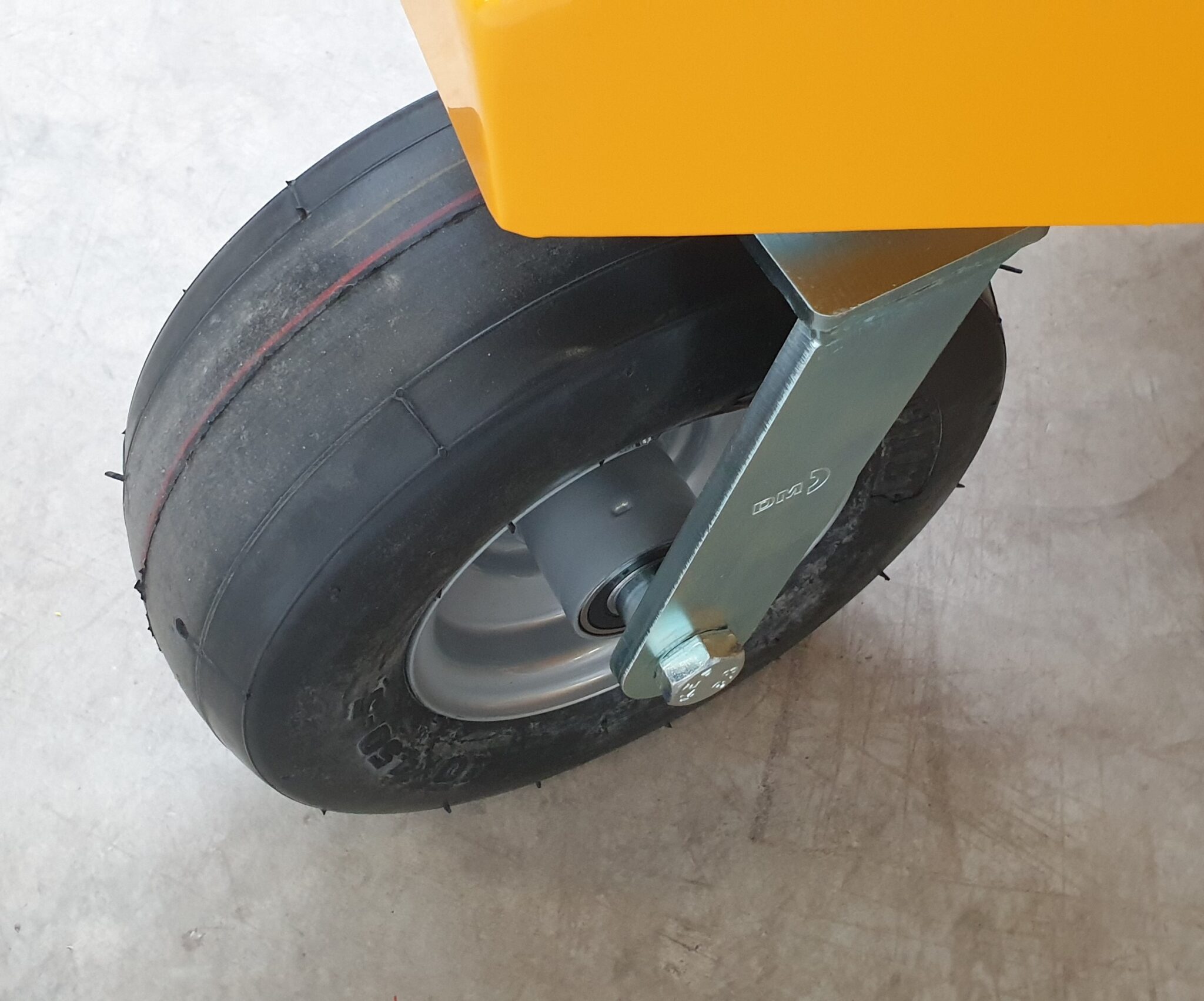

Pneumatic wheel swifel castor	Ø 260 mm x 4.5 - 5	On pitches and lawn. Width 100

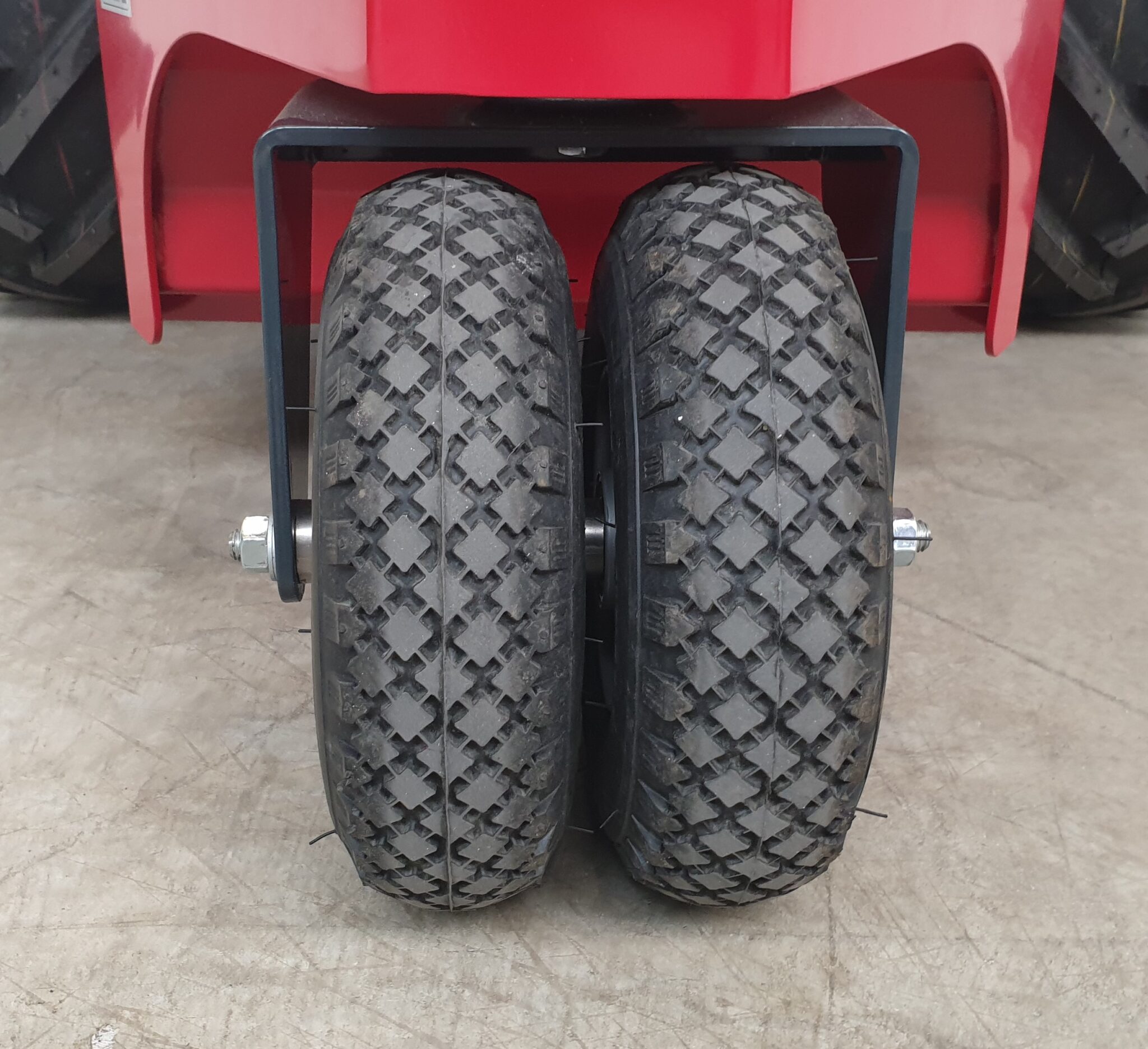

Pneumatic wheel swifel castor	Ø 215 mm x 2,5-4	More comfortable to drive on pavement and pumpy roads. On lawn and sand Total width 160 mm
Solid double wheel steering castor	Ø 200 mm x 40 mm	Optional Non-Marking Optional with Tilt-switch Total width is 110 mm

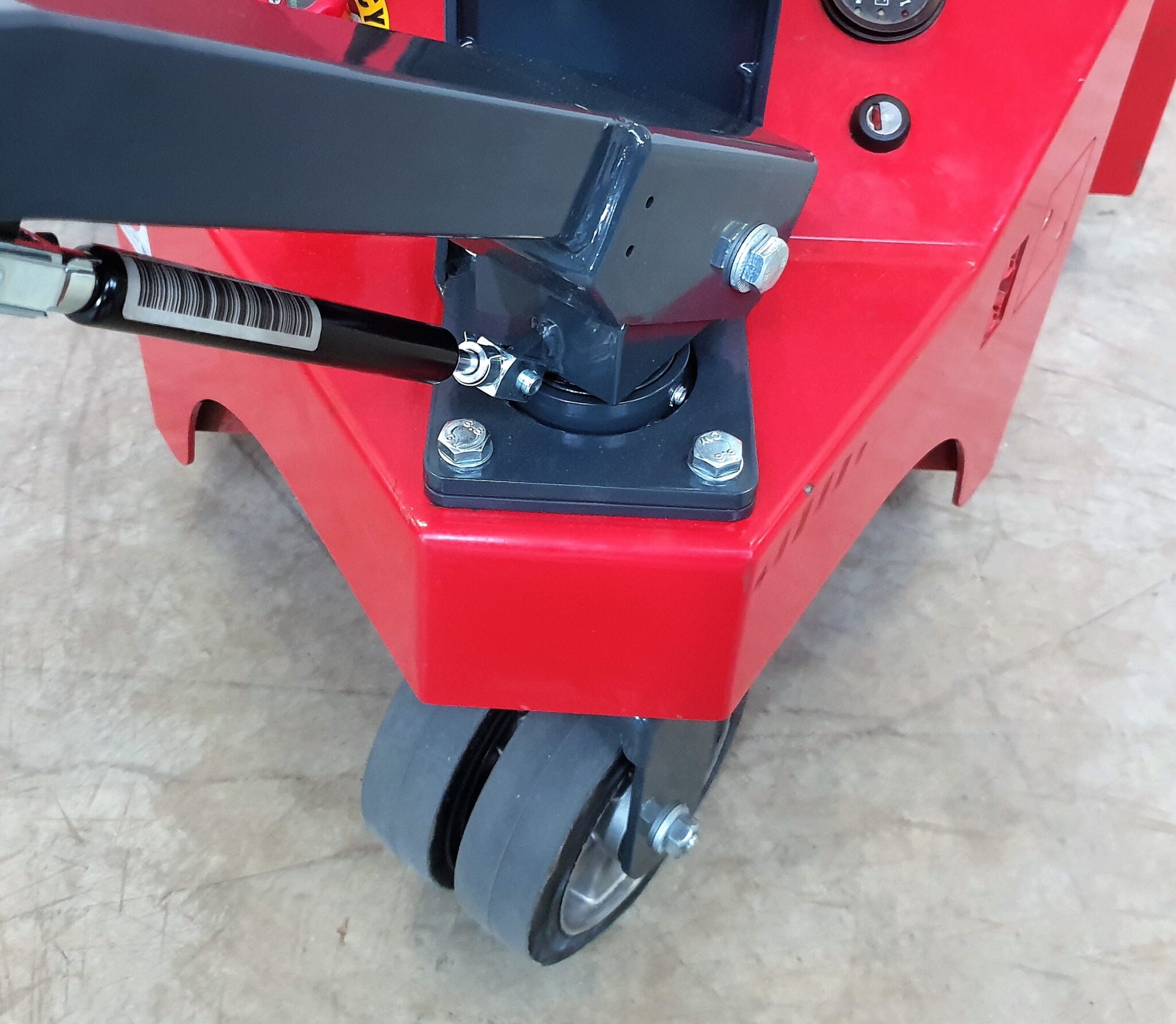

Solid double wheel steering castor	Ø 250 mm x 40 mm	Standard on Model XXL Non-Marking For inside and outside Total width is 110 mm

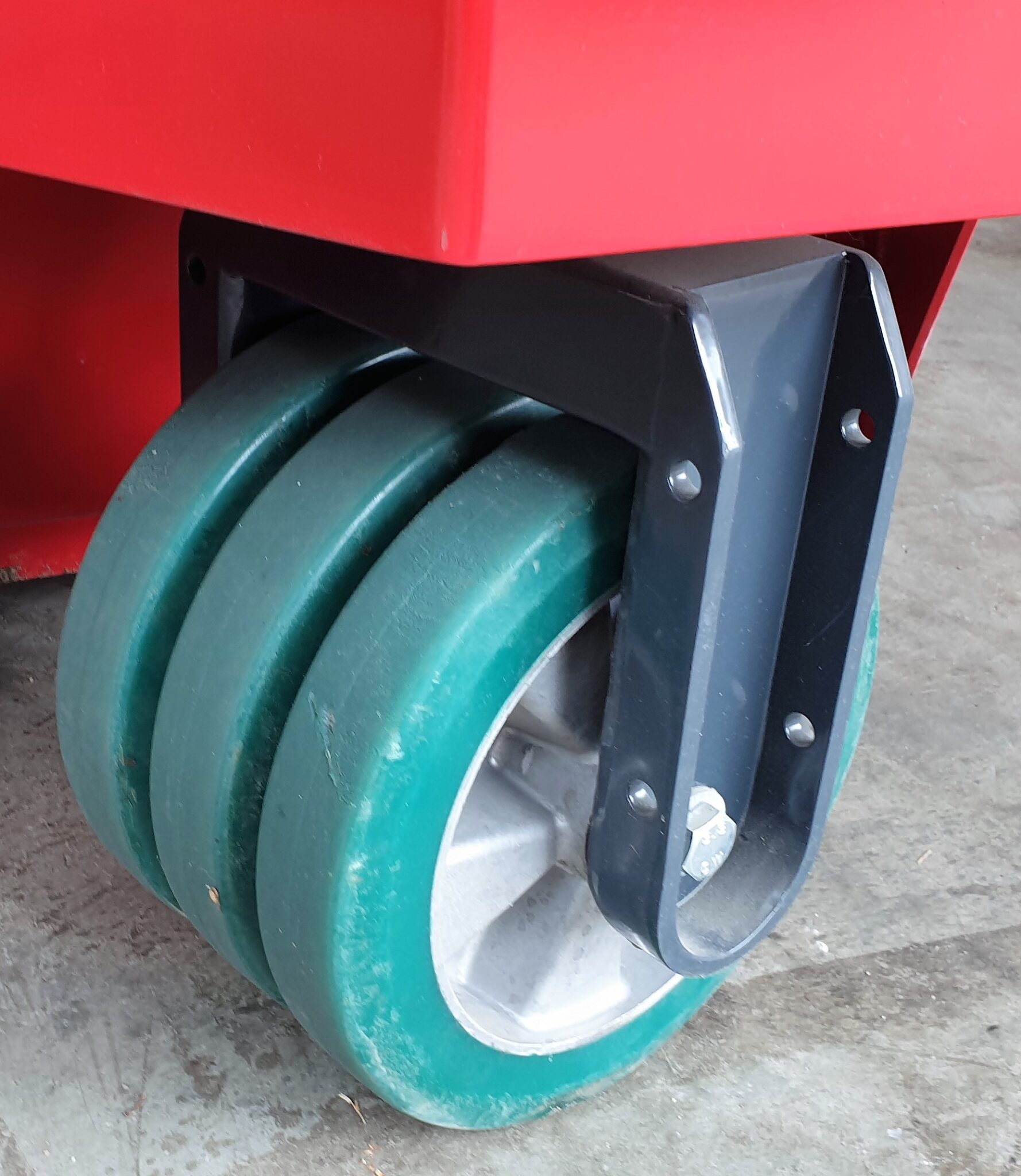

Solid triple wheel steering castor	Ø 250 mm x 40 mm	Steering for area’s with rails 3 wheels Non-Marking For inside and outside Total width is 160 mm

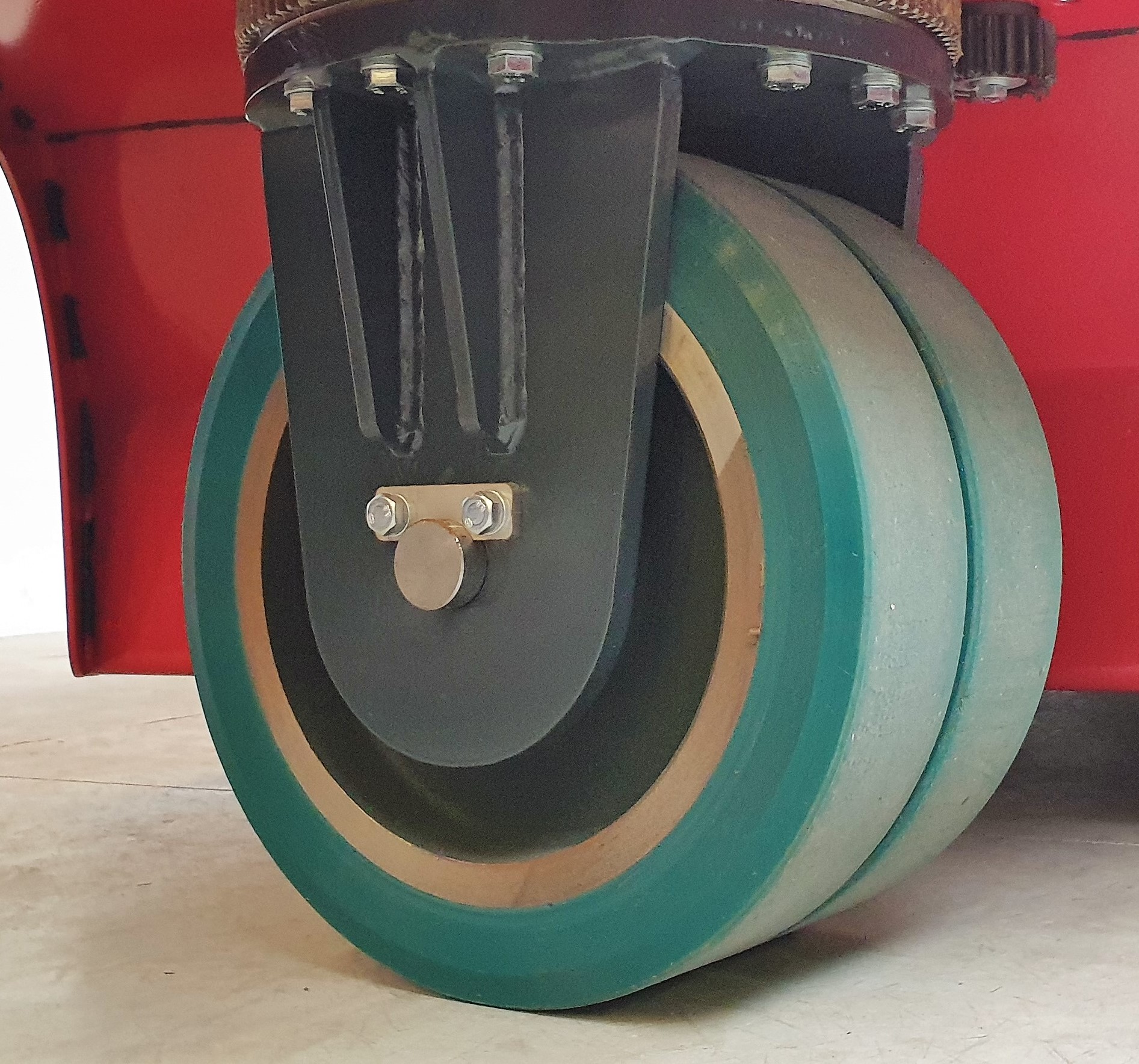

Solid double wheel power steering castor	Ø 300 mm x 50 mm	Standard on 3XL, 4XL, 5XL Separate power steering controller 48VAC, 6000 rpm Non-Marking For inside and outside Total width 210 mm
Anty Wheely wheels	Ø80	Avoid tipping over when speeding or braking Galvenised or powder coated For inside and outside
Anty Wheely wheels		Avoid tipping over when speeding or braking Powder coated For inside and outside

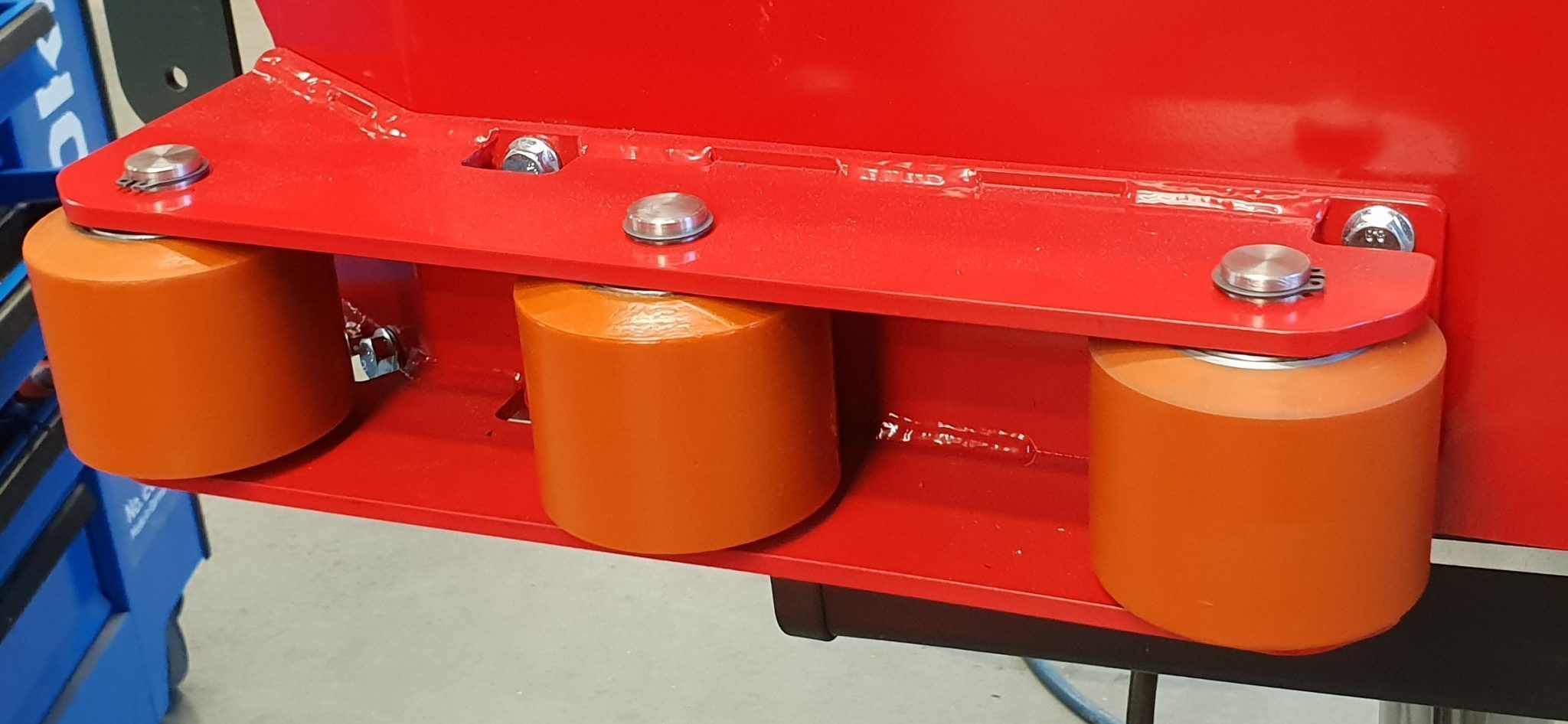

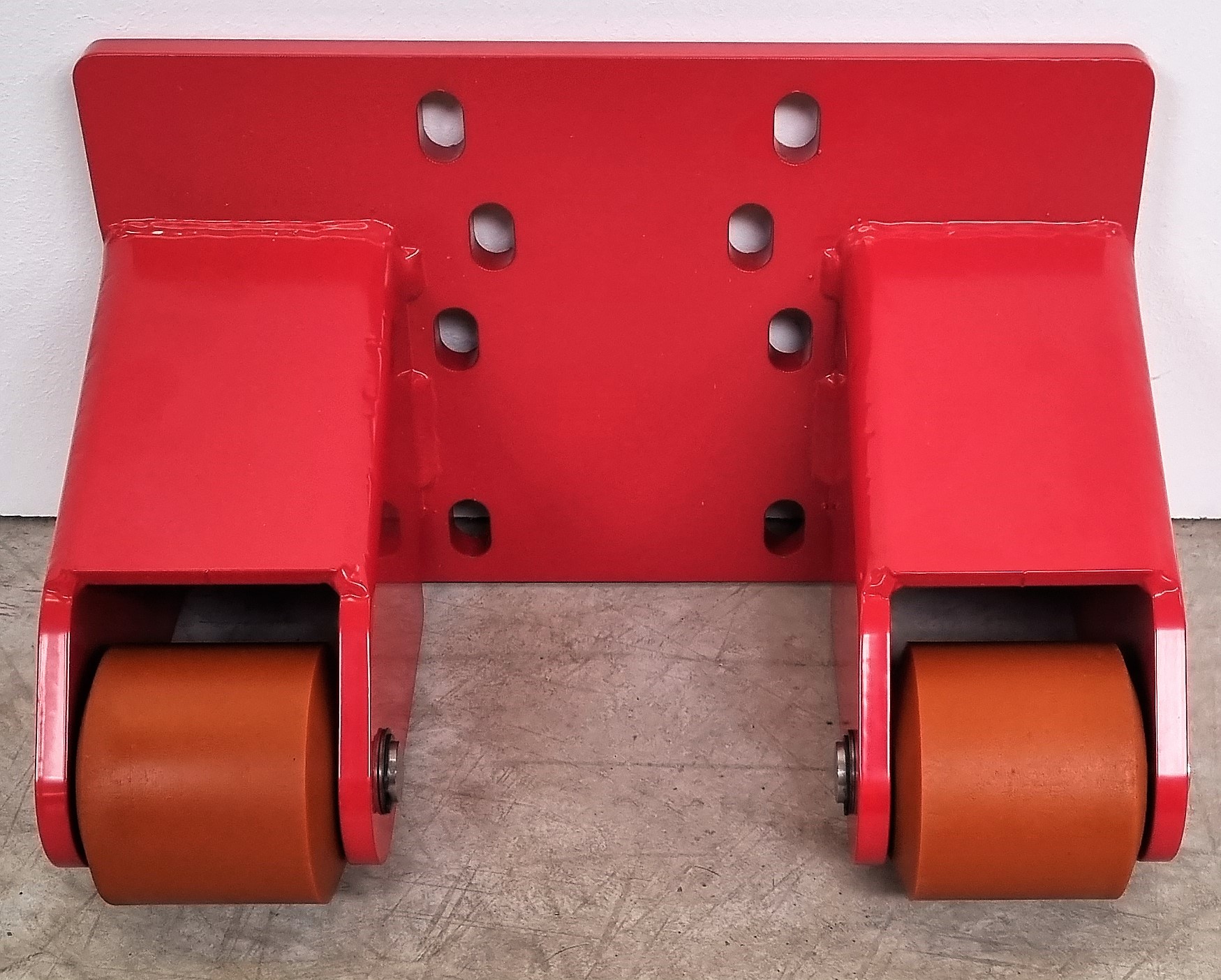

Side castors	Ø40	Lateral guidance to stay on track between rails or walls Non-Marking

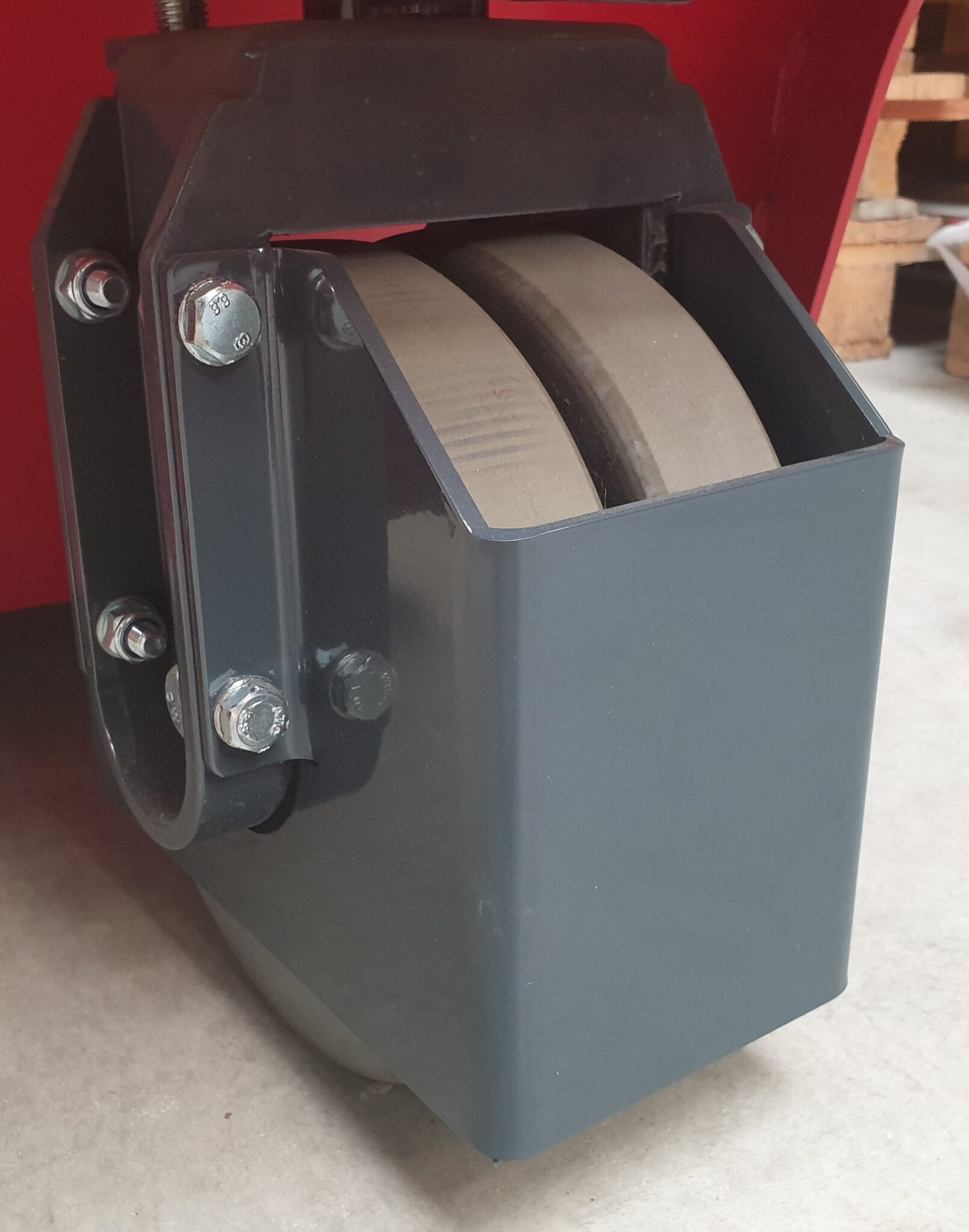

Steering wheel cover	--	Covers up the steering wheels or swivel castor Powder coated
Steering wheel cover		Covers up the steering wheels or swivel castor Powder coated

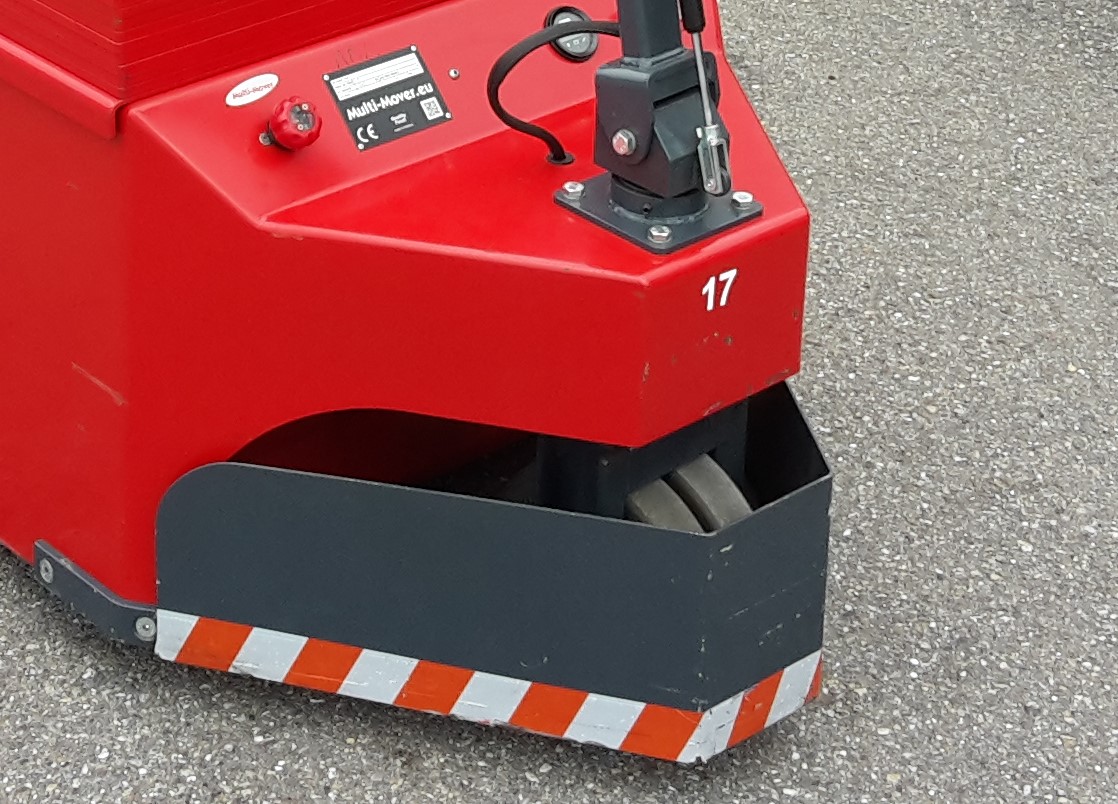

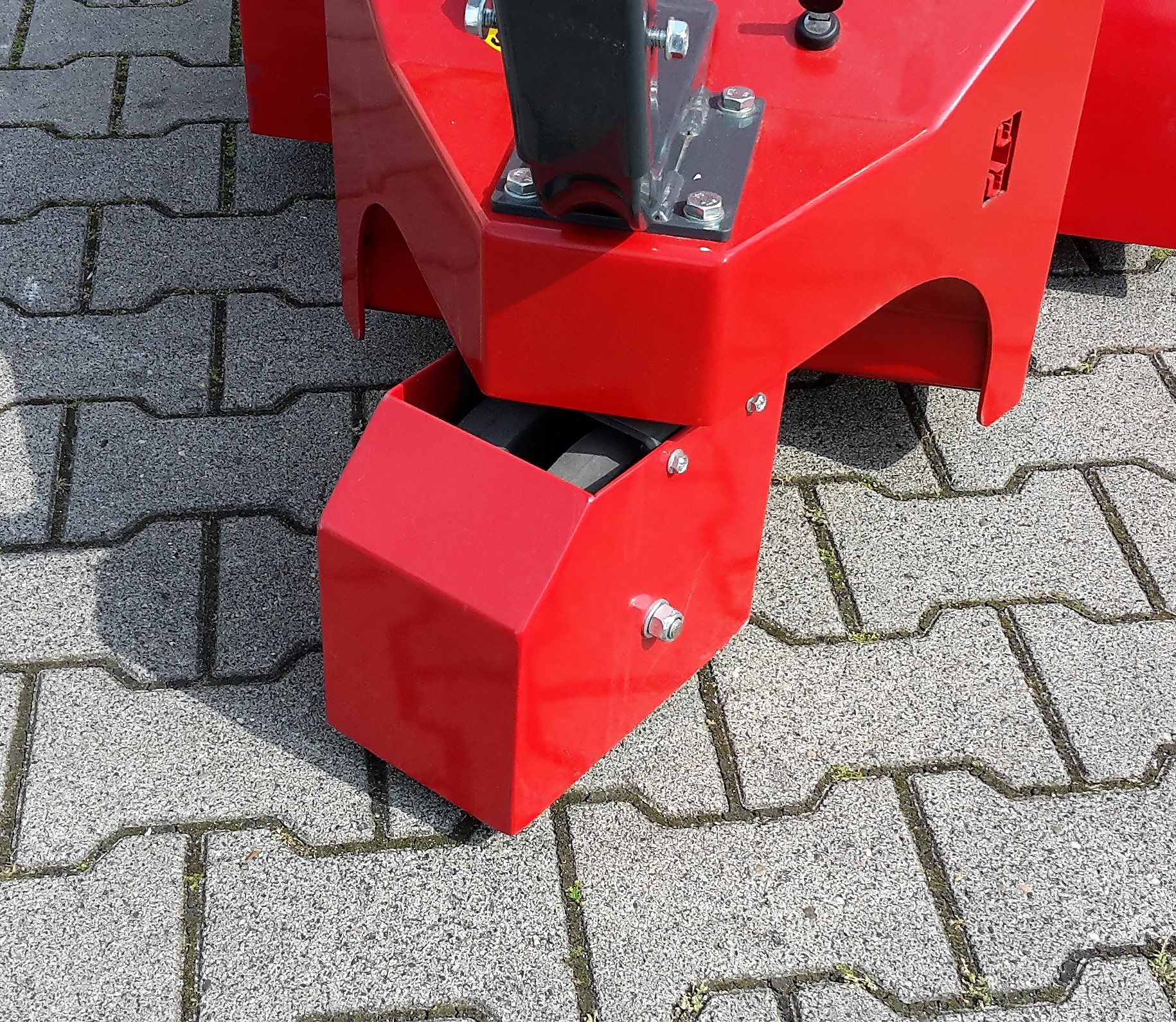

Steering wheel guard	--	Covers up the steering wheel area Powder coated
